HIDRA Crono

Control system for individual lifts or groups of lifts (from 2 to 10 cars) in installations from 2 to 32 stops, with arrival time optimization algorithm and adaptive management of landing calls (to go up and/or down) and special functions programmable by the installer. Single to double selective boarding, with all the traction/electric and oil-driven motorization options on the market, and with modular pre-wired installation of shaft or prepared for refurbishment installations and pre-wired car top-box. Complying with all the regulatory requirements of the sector (EN81-20, EN81-50, EN81-21, EN81-28, EN81-70, EN81-71, EN81-72, EN81-73, EN81-77, EN12015, EN12016) and integrated in our M2CS IoT remote management platform.

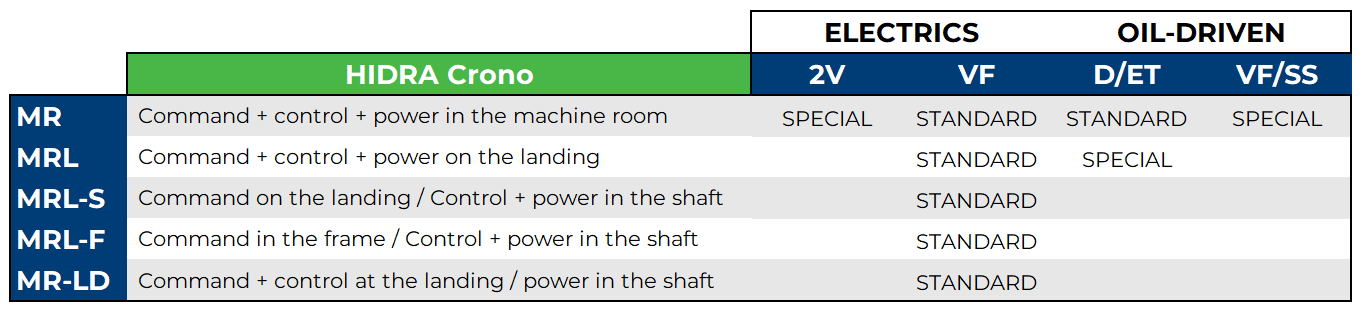

Models according to their location in the shaft

MR

Control panel that includes control and power elements (contactors, VVVF, etc.) in a conventional wall mounting cabinet.



Machine room

Traction/Asynchronous/Synchronous

800mm x 600mm x 250mm (Height,Width, Depth)

MRL

Control panel that includes control and power elements in a single stand-up cabinet for mounting on a landing.



No machine room

Control+Power on Landing

2000mm x 450mm x 250mm (Height,Width, Depth)

MRL-S

Reduced dimensions control panel for maximum integration in a landing and power panel with protective enclosure for mounting in the elevator shaft.



No Machine Room

Shaft inverter cabinert - 520mm x 500mm x 260mm (Height,Width, Depth)

Landing control - 800mm x 300mm x 120mm (Height,Width, Depth)

MRL-F

Control panel for mounting in the landing door frame and power elements with protective enclosure for mounting in the elevator shaft. Available for standard sizes of 120 mm and 150 mm frames.



No machine room

Shaft inverter cabinert - 520mm x 500mm x 260mm (Height,Width, Depth)

Door frame control- 1960mm x 110mm x (120-150)mm (Height,Width, Depth)

MR Hydraulic

HIDRA CRONO solution for conventional hydraulic machine room installations in all its variants



Machine Room

Direct/E-T/Soft Starter/Inverter

600mm x 600mm x 200mm (Width/Depth/Height)
